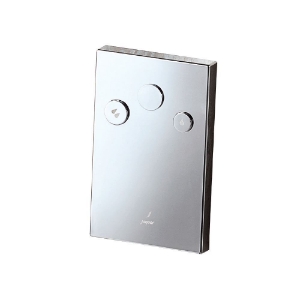

In-Wall Flushing System
Show i-Flush

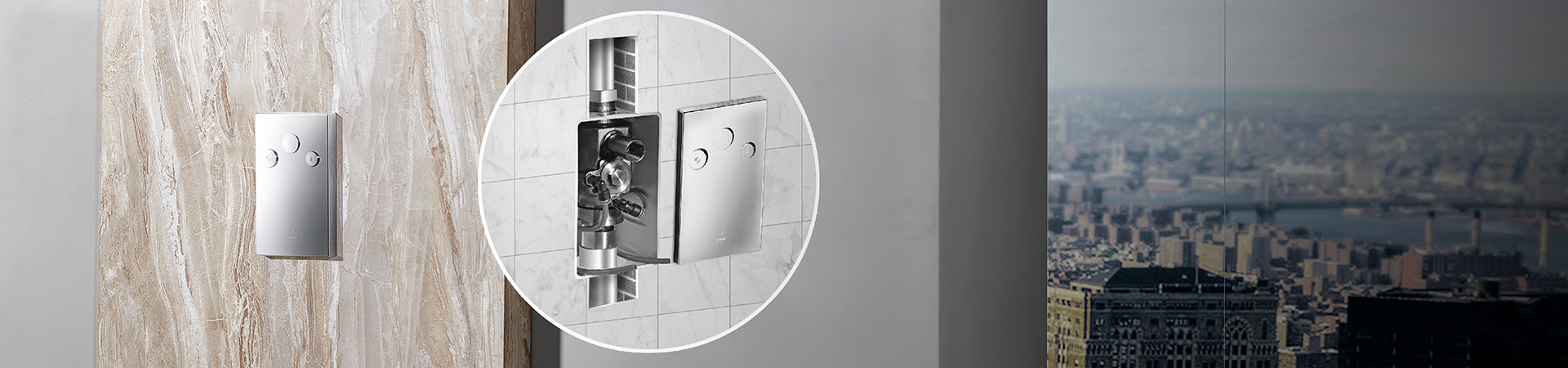

Installed directly in the pipeline, the i Flush concealed flushing mechanism has multiple aesthetic and design advantages. It also provides a more appropriate mechanism of flushing, using the available water pressure to create better siphoning at the trap and superior clearing of waste.
Show i-Flush Advantages
- Can be installed in 4” Brick Wall, no need to construct a separate ledge wall.
- It gets directly installed in 32 mm (1-1/4 inch) pipeline from overhead tank.
- Repeated flushing is possible whereas concealed flush tanks will definitely take time to fill up after flushing once.
- i-Flush 32 mm can work effciently at even low pressure (minimum 0.8 bar dynamics).
- Less noise in flushing.
- Dual flush - Saves water, a green product.
- Easy maintenance, control stop valve can be closed with the help of a T-type key provided along with product.

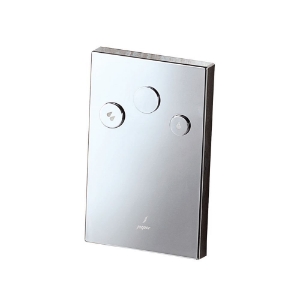

- Access to control cartridge by removing front actuation plate hence easy accessibility for maintenance.
In-built control system
Saves Water
Twin Flowsystem
Less Noise
Slim Wall Plate
Go Green
Cost Effective
Frequently Asked Questions:
1. What is the Jaquar iFlush system?
The Jaquar iFlush is an in-wall flushing system designed to operate directly through the water supply pipeline rather than relying on a conventional concealed cistern. It uses the available water pressure to support the flushing process. The appropriate configuration depends on the product, plumbing arrangement and installation requirements.
2. How is an iFlush system different from a concealed cistern?
An iFlush system is designed to connect directly to the water supply pipeline, while a concealed cistern stores water in a tank hidden behind the wall. The choice depends on the plumbing layout, available water pressure, installation space and compatibility with the toilet.
3. Does the iFlush system support dual flushing?
Selected iFlush configurations feature dual-flush operation, allowing users to choose between two flushing options. Confirm the functions and operating mechanism of the specific product before purchase.
4. What water pressure is required for an iFlush system?
The required pressure depends on the selected configuration. Jaquar lists a minimum dynamic pressure of 0.8 bar for its specified 32 mm iFlush system. Confirm the requirements for the exact product and have the water pressure assessed at the installation point before choosing a system.
5. Can iFlush be installed in a brick wall?
Jaquar describes its iFlush system as suitable for installation in a 4-inch brick wall without requiring a separate ledge wall. Suitability depends on the specific configuration and site conditions, so the installation instructions should be checked before construction begins.
6. Can an iFlush system be used in place of every concealed cistern?
No. An iFlush system and a concealed cistern use different flushing arrangements. Before selecting iFlush, verify that the water supply, toilet configuration, drainage and plumbing layout are compatible with the intended installation.
7. Is the iFlush system suitable for repeated flushing?
Jaquar describes repeated flushing as an advantage of the iFlush system because it operates directly through the pipeline rather than waiting for a concealed cistern to refill. Actual performance depends on the water supply and the specific product configuration.
8. How is an iFlush system maintained?
Selected iFlush configurations provide access to the control cartridge through the front actuation plate. The control stop valve can also be closed using the specified key supplied with applicable products. Maintenance should follow the product instructions and be carried out by a qualified professional when required.
9. What finishes are available for iFlush plates and controls?
The iFlush collection includes selected products in finishes such as chrome, black matt, black chrome, graphite, stainless steel, antique bronze and antique copper. Availability varies by product, so confirm the finish on the individual listing.
10. What should I check before purchasing an iFlush system?
Confirm the exact product configuration, required water pressure, pipeline connection, compatibility with the toilet, installation space, control arrangement and maintenance access. It is also important to verify which components are included and whether an exposed part kit or additional components are required.
