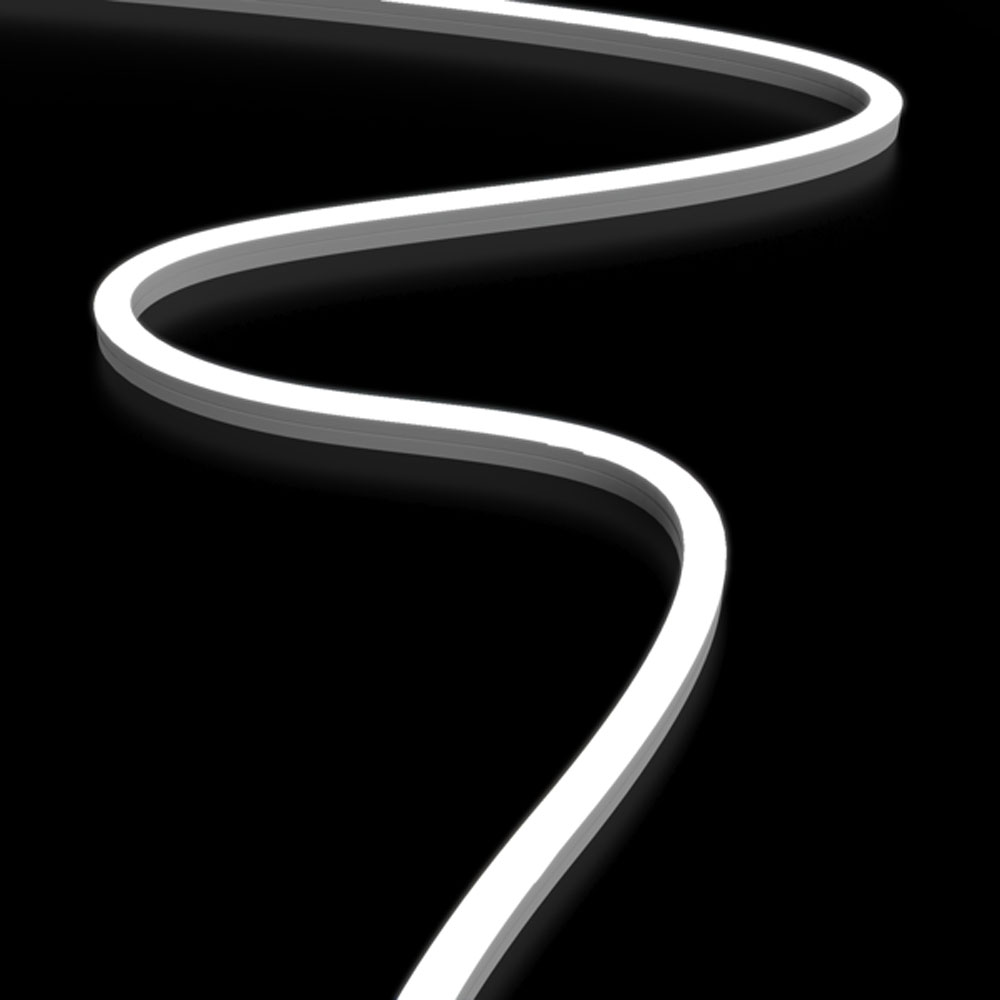

Linear Flex 18W

Range :
Linear Flex
Code :
JQL-GRY-LFLXHP018W
Description :
- Power Consumption 18W
- Luminous Flux 1100lm/m at 4000K
- Beam Angle 114°
- Color Temperature 3000K / 4000K / 6500K / RGB / RGBW
- Input Voltage AC100-240V / DC24V
- Control DMX/RDM/DALI/Remote/On-Off
- Power factor ≥0.95
- Housing Silicon
- Dimensions W16xH17mmxL (Length can be customised)
- IP Rating IP68
- IK Rating IK07
- Mounting Brackets / fixed profile / adjustable profile
- Operating Temperature -30°C ~ +45°C
- Lifespan >50,000Hrs (Ta=30°C@L70)
- THD <10%
- Certificate BIS / CE / RoHS

Price on request

Download:

Disclaimer:

Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
The prices are subject to change without notice and those ruling at the time of supply will be charged.
Colours & sizes of product images shown in the Website may vary in reality

Features
• High quality circuit design for stable and reliable performance
• Excellent flexibility for side bending and easy shape
• With cut mark on the back to satisfy different requirements
• IP67 perfect for indoor and outdoor use
• Excellent weather resistance and corrosion resistance
• Dimmable
• Material: 100% Food-Grade Silicone
• Mounting Clips Included
